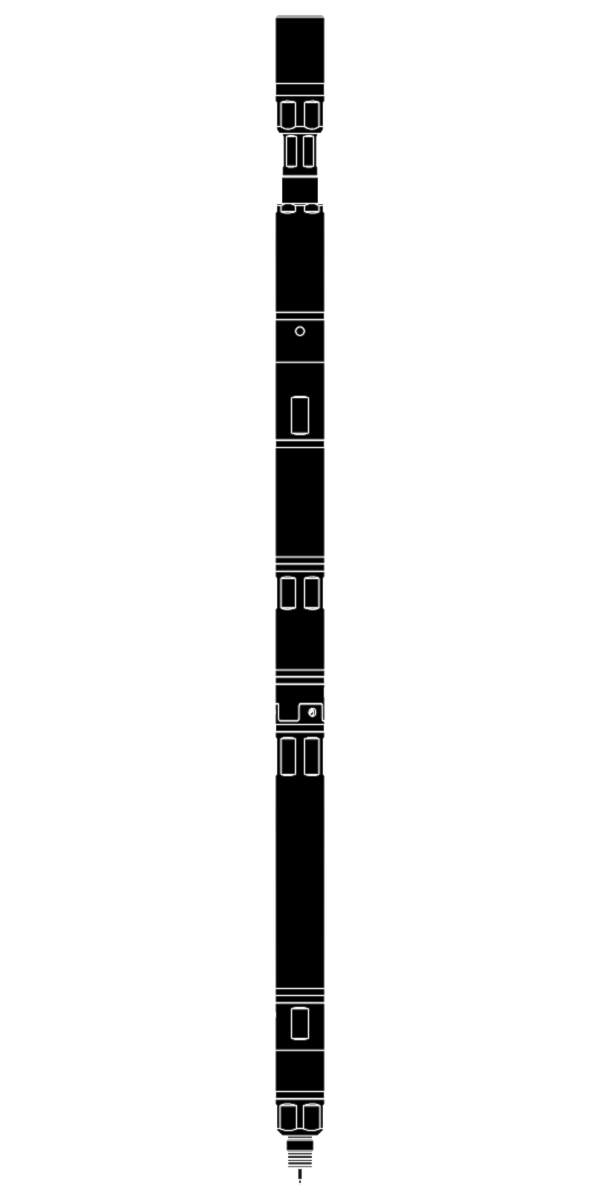

The LiMAR High Pressure Cablehead provides a primary well control barrier and a means of running logging tools or perforating guns on Coiled Tubing.
The tool features; double flapper check valves, a cable anchor and release mechanism, a flow activated disconnect as well as the means to pass an electrical signal to the tools below. The disconnect mechanism and lower electrical section can be replaced with a conventional Flo & Tension Disconnect, whilst the cable remains anchored, allowing conventional CT work to be carried out with the same string.
TOOL APPLICATIONS:
- Coiled Tubing Logging and Perforating, as well as conventional CT operations
DESIGN FEATURES & BENEFITS:
- Single piece cartridge type Double Flapper Check Valve safety system
- High tensile and compressive strength rating
- 15,000 psi Safe Working Pressure
- User friendly cable anchor and release mechanism
- Flow and Tension release mechanism
- Ability to carry out conventional work without changing the CT string or Cablehead
- Offset bores to maximise flapper ID’s for conventional operations
- Disconnect Sub fitted with LiMAR GS type internal fish neck profile
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
- Connection options to suit customer requirements
- Corrosion resistant materials
TECHNICAL DATA
| Assembly Part No. | Actual OD | Disconnect GS Profile | Make up Length | Conductors |
| 361-1687-0313-XXX-XXX-RX | 1.687" | 1-1/2” LiMAR GS | 43.47” | Mono |
| 361-2125-0313-XXX-XXX-RX | 2.125" | 2” LiMAR GS | 47.37” | Mono |
| 361-2875-0438-XXX-XXX-RX | 2.875" | 3” LiMAR GS | 51.35” | Multi |
XXX-XXX Denotes upper and lower connection types.
For additional sizes or further information please contact sales
