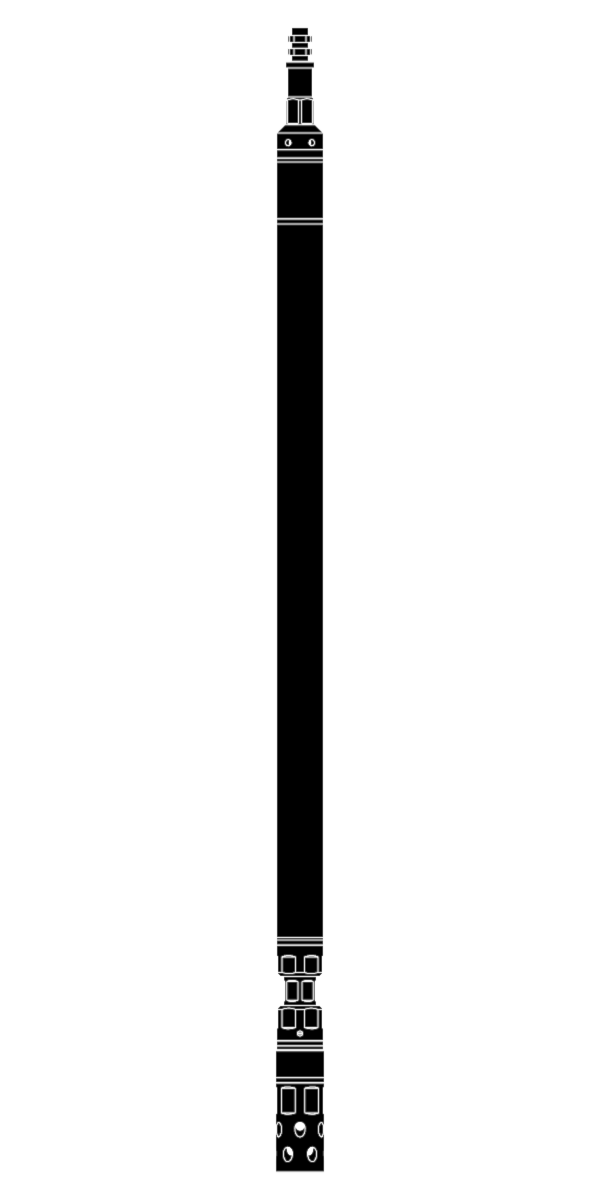

The LiMAR Dump Bailer is designed to convey & deposit materials within the well bore.
Applications include the depositing of cement above a retainer to create a cement barrier or the deposition of L.M.P alloy to create dense liquid debris barriers to protect the internal fish neck of a flow control device. The Dump Bailer contents are released from within the cylinder simply by jarring downwards to rupture a brass retaining disc. The contents are then free to flow from the lower end of the Dump Bailer via the open ended bailer shoe and its ports.
TOOL APPLICATIONS:
- To convey and deposit liquid materials within a well bore
DESIGN FEATURES & BENEFITS:
- Mechanical shear sub with no requirement for pyrotechnics, hydraulics or electronics
- Additional extension tubes for increasing capacity
- Optional bottom shoes available to suit varied applications
- Connection options to suit customer requirements
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Assembly Part No. | Actual OD | Fish Neck | Connection | Cylinder Volume |
| 1031-1500-XXX-RX | 1.500" | Optional | Optional | 0.25 litre/ft |
| 1031-1875-XXX-RX | 1.875" | Optional | Optional | 0.34 litre/ft |
| 1031-2375-XXX-RX | 2.375" | Optional | Optional | 0.58 litre/ft |
| 1031-2875-XXX-RX | 2.875" | Optional | Optional | 0.83 litre/ft |
| 1031-3500-XXX-RX | 3.500" | Optional | Optional | 1.29 litre/ft |
| 1031-4500-XXX-RX | 4.500" | Optional | Optional | 2.26 litre/ft |
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
