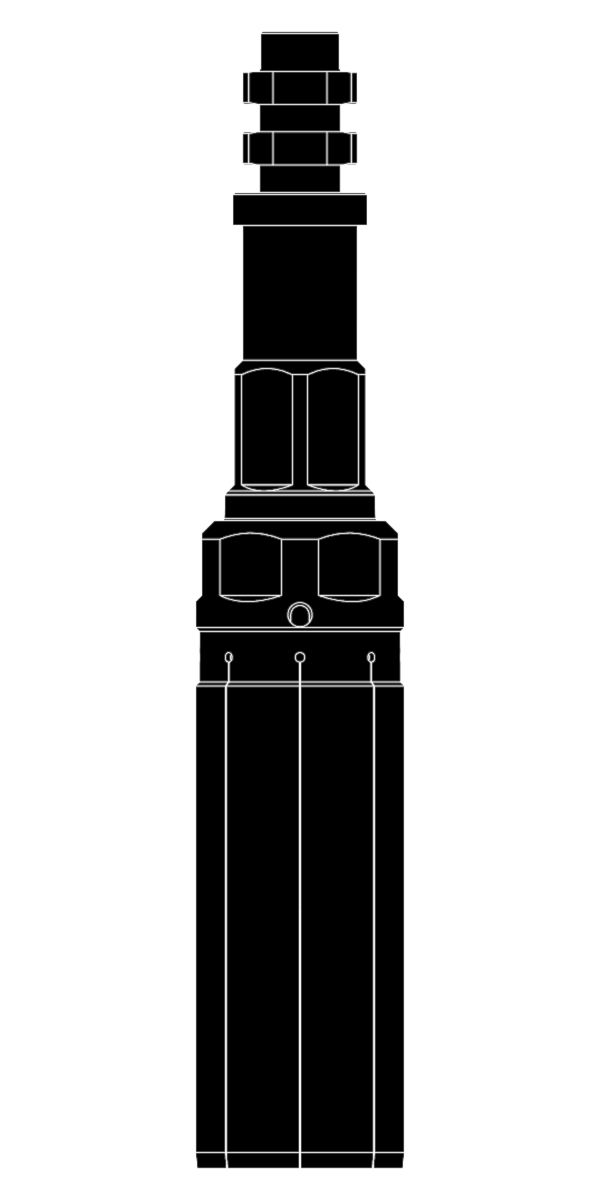

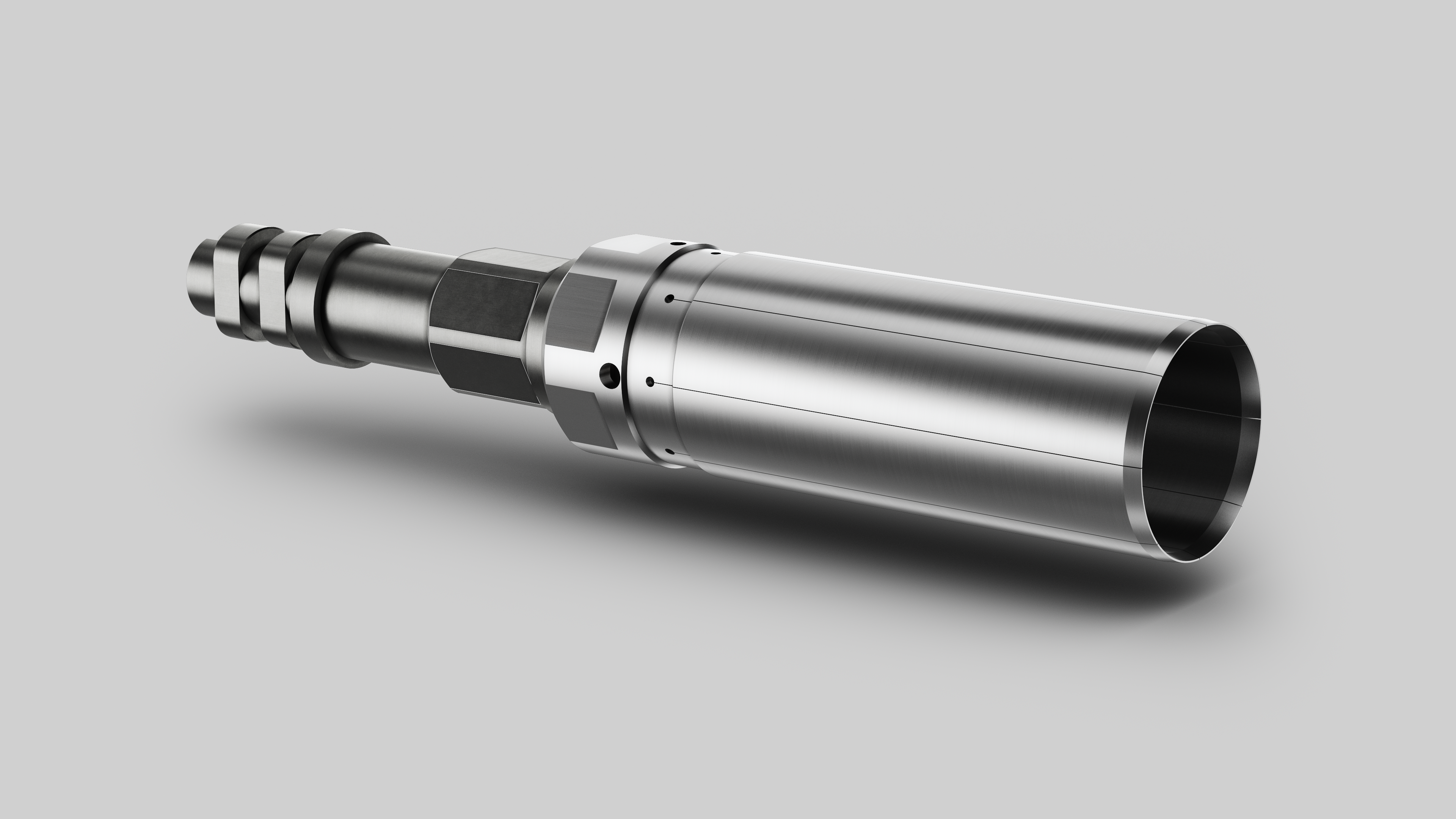

The LiMAR Adjustable Slotted Wire Finder is used during fishing operations to locate and ball–up the top of parted slickline or braided line.
The finder finger OD can be altered by simply rotating the adjustable finder skirt over the tapered main body. The finder skirt is then locked into place at the desired running OD to suit the well geometry. The unique main body design provides extensive options of tool configuration. Interchangeable grab arms can be added and the tool can be run as a wire finder grab to locate and recover the wire in a single run. Incorporating a lead impression block, magnet or centre spear further extends the operating envelope of this unique system.
TOOL APPLICATIONS:
- For locating and balling-up the top of parted wireline
DESIGN FEATURES & BENEFITS:
- Adjustable Finder Fingers to suit varied tubing ID’s / restrictions
- Optional 2, 3 or 4 pronged Grab Arm options
- Multiple configurations
- Inventory reduction
- Ideal for use in conjunction with LiMAR® Universal Dummy Fish Neck
- Connection options to suit customer requirements
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Assembly Part No. | To Suit Tubing Size | Adjustment Range | Fish Neck | External Connection | Internal Connection |
| 1099-2375-XXX-RX | 2-3/8" | 1.750" - 1.992" | Optional | Optional | 15/16" UN Box |
| 1099-2875-XXX-RX | 2-7/8" | 2.200" - 2.441" | Optional | Optional | 15/16" UN Box |
| 1099-3500-XXX-RX | 3-1/2" | 2.720" - 2.992" | Optional | Optional | 1-1/16" UN Box |
| 1099-4000-XXX-RX | 4" | 3.100" - 3.548" | Optional | Optional | 1-1/16" UN Box |
| 1099-4330-5720-XXX-RX | 5-1/2" | 4.330" – 5.720" | Optional | Optional | 1-1/16" UN Box |
| 1099-4500-XXX-RX | 4-1/2" | 3.600" - 3.992" | Optional | Optional | 1-1/16" UN Box |
| 1099-5000-XXX-RX | 5" | 3.800" - 4.330" | Optional | Optional | 1-1/16" UN Box |
| 1099-5500-XXX-RX | 5-1/2" | 4.530" - 4.904" | Optional | Optional | 1-1/16" UN Box |
| 1099-7000-XXX-RX | 7" | 6.000" - 6.375" | Optional | Optional | 1-1/16" UN Box |
| 1099-5645-7450-XXX-RX | 7"-8-5/8" | 5.645" – 7.450" | Optional | Optional | 1-9/16" UN Box |
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
