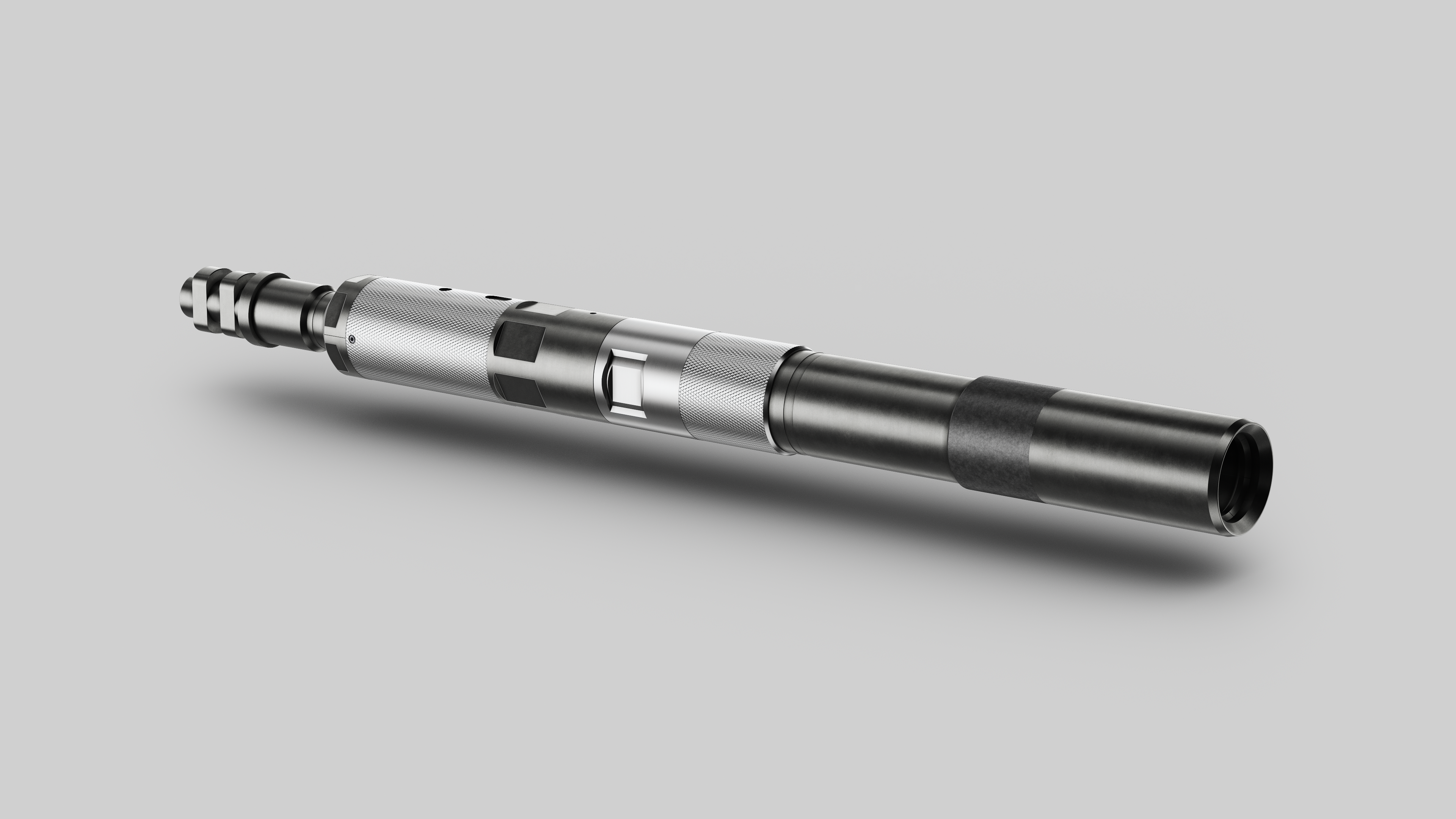

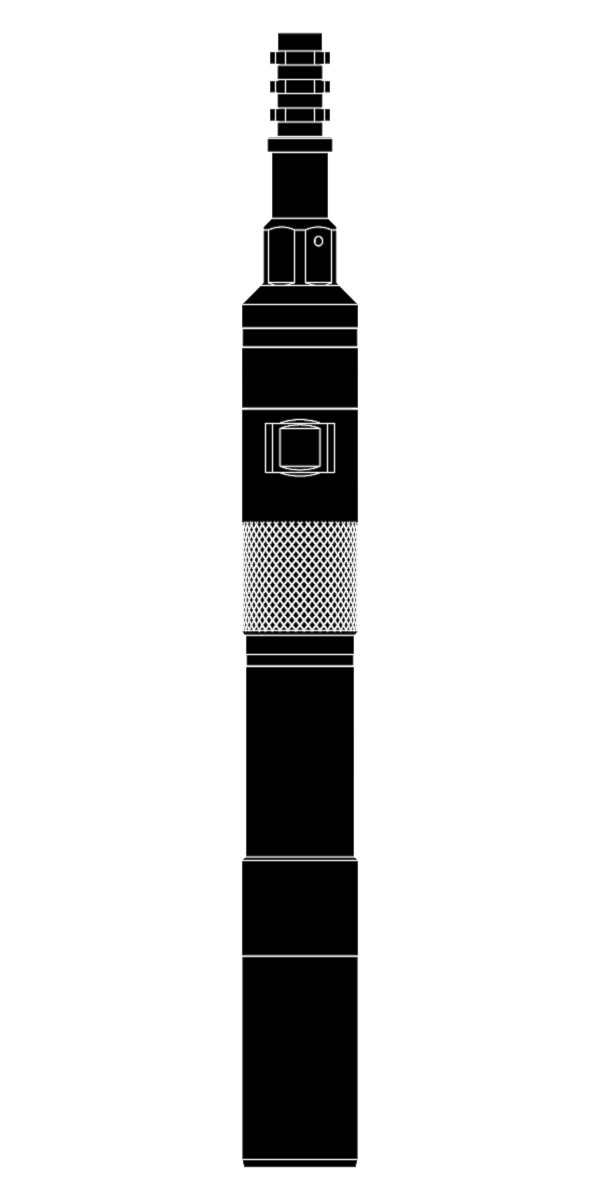

The LiMAR Multi-Action Shear (MAS) HDPT increases operational flexibility by providing multiple, sequential shear-direction options.
The MAS HDPT is typically used in heavy jarring applications and incorporates the unique Arm-Align® feature which allows easy adjustment for Shear Down, Shear Up as well as the Double Jar Down facility. The primary function of this is to reduce the likelihood of a miss-run during operations.
TOOL APPLICATIONS:
- Heavy duty recovery of items with standard external type fishing necks with multiple sequential shear-direction options
DESIGN FEATURES & BENEFITS:
- Simplistic, ergonomic design for rapid redress
- The MAS HDPT can be easily configured for multiple shear direction options;
- Shear Down
- Shear Up
- Jar-down indefinitely, jar-up indefinitely, Shear Down - LiMAR Arm-Align® feature for integral re-arming and shear pin alignment
- Multi-Reach core for ALL known reaches for inventory reduction and cost saving
- One piece collet fingers with increased contact area between collet fingers & fish neck
- Multiple Shear Pin options increasing operational flexibility
- Optional LiMAR® Bell Guide Housings available
- Connection options to suit customer requirements
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Assembly Part No. | Actual OD | Fish Neck | Connection | To Engage Fish Neck |
| 7199-1500-XXX-RX | 1.850" | Optional | Optional | 1.187" |
| 7199-2000-XXX-RX | 2.220" | Optional | Optional | 1.375" |
| 7199-2500-XXX-RX | 2.720" | Optional | Optional | 1.750" |
| 7199-3000-XXX-RX | 3.110" | Optional | Optional | 2.313" |
| 7199-4000-XXX-RX | 4.150" | Optional | Optional | 3.125" |
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
