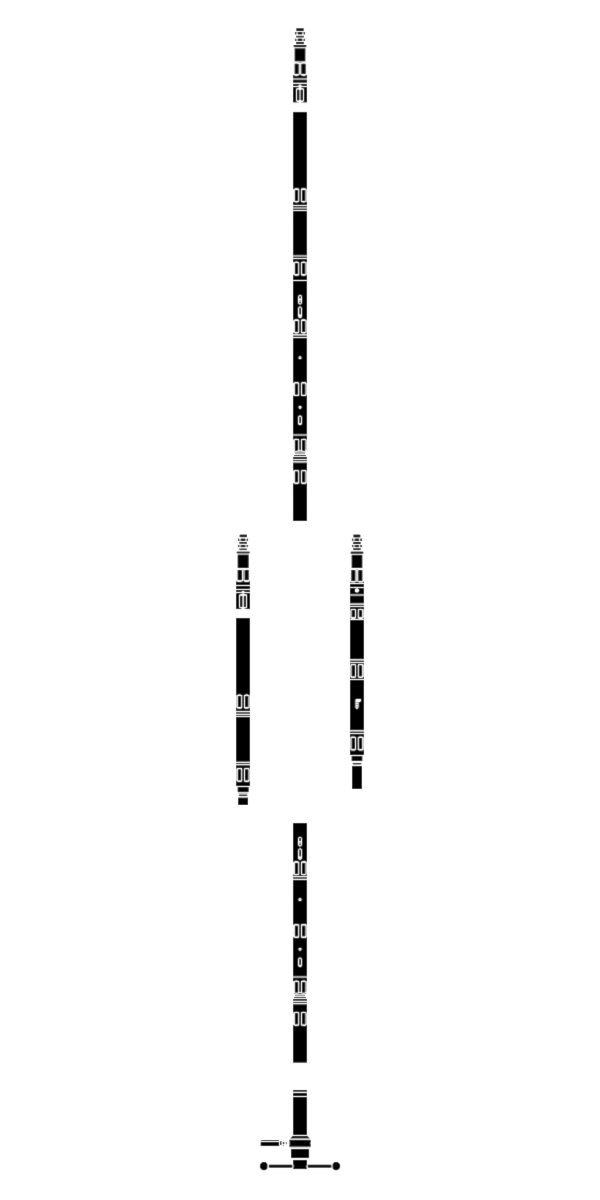

The LiMAR Uni-Jar package comprises of the LiMAR Adjustable Spring Jar, Calibration Sub, Hydraulic Jar & Accelerator. It is ideal for use in circumstances where high impact toolstring components are used in cases of necessity and where inventory reduction is important.
The common latching system between the Adjustable Spring and Hydraulic Jar allows utilisation of a single, common Jar Rod which offers operational flexibility particularly when selecting the right type of jar for the right well. The Uni-Jar is available in sizes ranging from 1.500” to 2.500” OD and with connection options to suit Customers’ requirements. Short Stroke Jar options are also available when rig-up height is limited.
TOOL APPLICATIONS:
- To provide a compact package of key components required in the event that higher impacts are required during standard operations
DESIGN FEATURES & BENEFITS:
ACCELERATOR
- Stroke length optimised to suit equivalent Hydraulic & Spring Jar size and setting range
ADJUSTABLE SPRING JAR - SUB
- Unique inverted jar design with upper latch mechanism
- Simple, ergonomic and on-toolstring adjustment feature
- One piece Calibration Sub
HYDRAULIC JAR - SUB
- Harmonised hydraulic and mechanical functions improving reliability in oil and gas wells
- 200, 500 and 1000 grade silicone oil available to control jar release time in varied well temperatures
- Unique inverted jar design for improved debris tolerance
- Balance piston chamber to limit well pressure effects
- Simplistic, ergonomic design for rapid redress
- “J” Slot feature for simple and safe jar rod release at surface
SHARED FEATURES & BENEFITS
- Available in industry standard toolstring sizes
- Connection options to suit customer requirements
- Simple, robust design ensuring ease of operation or the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Assembly Part No. | Actual OD | Fish Neck | Connection | Working Range |
| 1075-1500-XXX-RX | 1.500" | 1.375" | Optional | up to 1100lbs |
| 1075-1750-XXX-RX | 1.750" | 1.375" | Optional | up to 3000lbs |
| 1075-1875-XXX-RX | 1.875" | 1.750" | Optional | up to 3000lbs |
| 1075-2125-XXX-RX | 2.125" | 1.750" | Optional | up to 3000lbs |
| 1075-2500-XXX-RX | 2.500" | Optional | Optional | up to 7000lbs |
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
