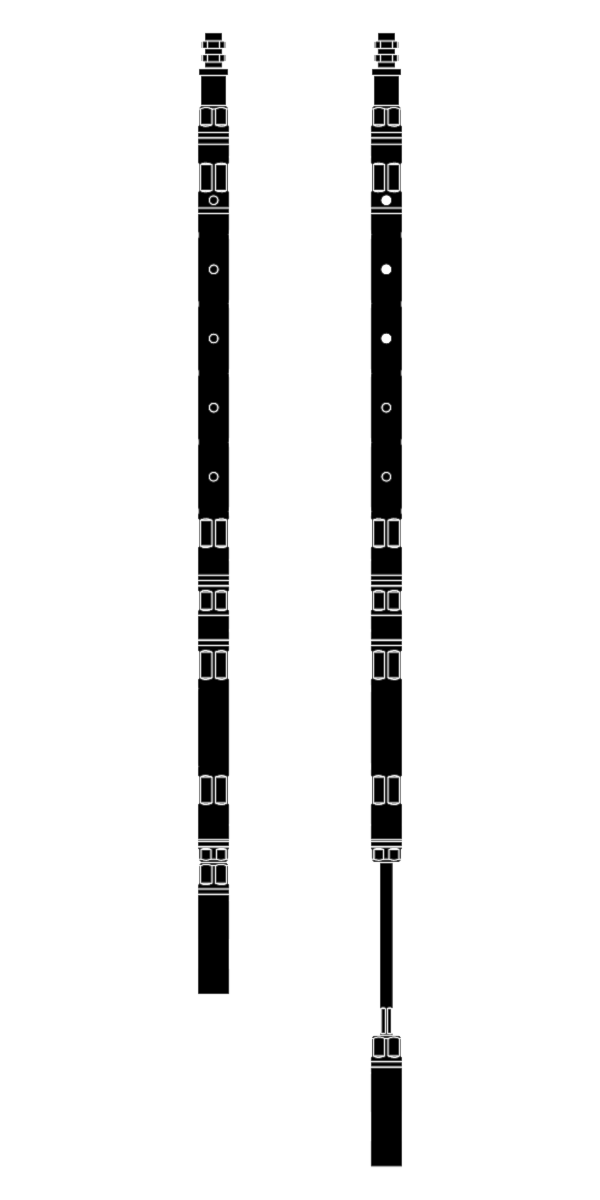

The LiMAR Tubular Linear Jar is designed for providing an optimum, bi-directional mechanical jar action in high angle, deviated well bores.
The jar rod strokes across two linear type bearings which greatly reduces friction caused by lateral loading when the Tubular Linear Jar is in a non-vertical position.
TOOL APPLICATIONS:
- Optimise mechanical jar action in high angle, deviated wells
- Ideal for utilisation during fishing operations for wire recovery
DESIGN FEATURES & BENEFITS:
- Available in industry standard toolstring sizes
- Optional jar stroke length
- Dual supporting linear bearings for friction reduction
- Ported bearing grease sub for easy maintenance
- Increased mass above jar rod allows for a shorter toolstring
- Optional connections
- Optional LiMAR® Multi-Roller Wheel Subs available
- Connection options to suit customer requirements
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Assembly Part No. | Actual OD | Fish Neck | Connection | Jar Stroke Options | Make up Length - Closed |
| 1006-1500-XX-XXX-RX | 1.500" | 1.375" | Optional | 20" / 24" / 30" | 50.70" / 54.70" / 60.70" (LQK) |
| 1006-1750-XX-XXX-RX | 1.750" | 1.375" | Optional | 20" / 24" / 30" | 50.70" / 54.70" / 60.70" (LQK) |
| 1006-1875-XX-XXX-RX | 1.875" | 1.750" | Optional | 20" / 24" / 30" | 53.68" / 57.68" / 63.68" (LQK) |
| 1006-2125-XX-XXX-RX | 2.125" | 1.750" | Optional | 20" / 24" / 30" | 53.81" / 57.81" / 63.81" (LQK) |
| 1006-2500-XX-XXX-RX | 2.500" | 2.313" | Optional | 20" / 24" / 30" | 59.47" / 63.47" / 69.47" (LQK) |
XX - Denotes stroke length
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
