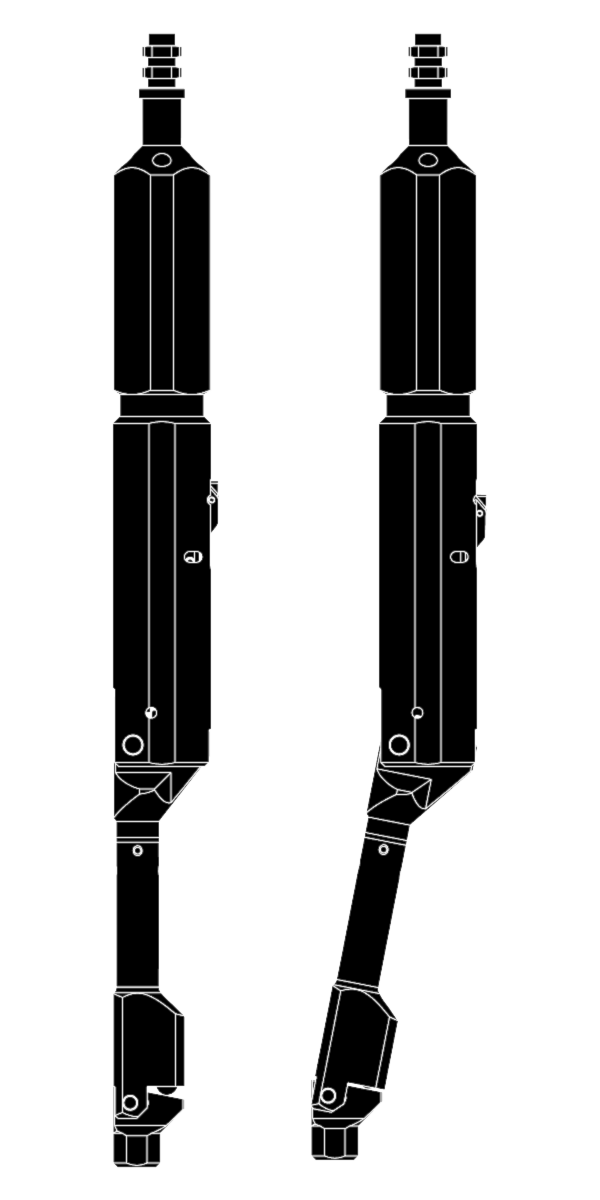

The LiMAR Merla-Type Kickover Tool (KOT) will install & retrieve 1” and 1-1/2” Gas Lift Valves in various Side Pocket Mandrel’s (SPM).
Ideally suited for moderately deviated wells and in restricted rig-up height applications, the Merla-Type Kickover Tool, maintaining key industry proven mechanisms; is easy to operate and maintain.
TOOL APPLICATIONS:
- Suited but not limited to moderately deviated wells, the Merla-Type Kickover Tool can be used as an alternative to the OK or OM Type Kickover Tools to service 1” & 1-1/2” Gas Lift Valves in various Side Pocket Mandrels
DESIGN FEATURES & BENEFITS:
- Available to suit 1” & 1-1/2” Gas Lift Valves (GLV)
- Short overall length compared to all other available Kickover Tools – ideal for restricted height applications
- Simple re-arming feature which can also be carried out in-situ with a hanging toolstring
- Optional integral Swivel option available to assist orientation at depth
- Industry proven kick arm and trigger mechanisms
- Improved bypass area to improve deployment in fluid
- Robust design with minimal moving parts
- Quick Connections supplied as standard to further reduce assembly length and prevent damage caused by installing crossovers using wrenches
- No welded components
- Fully shearable to ensure safe recovery
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Merla-Type KOT to suit 1” GLV’s (HD-TMP-Type) | ||||
| Assembly Part No. | Nominal Tubing Size | To suit GLV | Fish Neck | Connection |
| 1197 | 2-3/8" | 1" | Optional | Optional |
| 1197 | 2-7/8" | 1" | Optional | Optional |
| 1197 | 3-1/2" | 1" | Optional | Optional |
| 1197 | 4-1/2" | 1" | Optional | Optional |
| Merla-Type KOT to suit 1-1/2” GLV’s (HD-TP-Type) | ||||
| Assembly Part No. | Nominal Tubing Size | To suit GLV | Fish Neck | Connection |
| 1224 | 2-7/8" | 1-1/2" | Optional | Optional |
| 1224 | 3-1/2" | 1-1/2" | Optional | Optional |
| 1224 | 4-1/2" | 1-1/2" | Optional | Optional |
| 1224 | 5-1/2" | 1-1/2" | Optional | Optional |
For additional sizes or further information please contact sales
