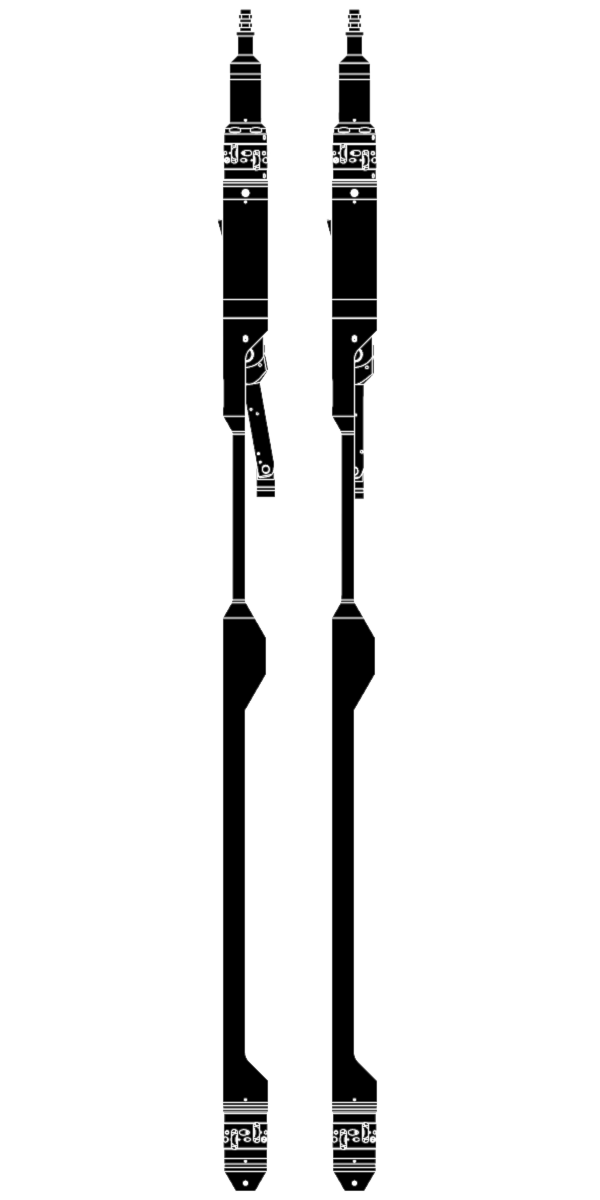

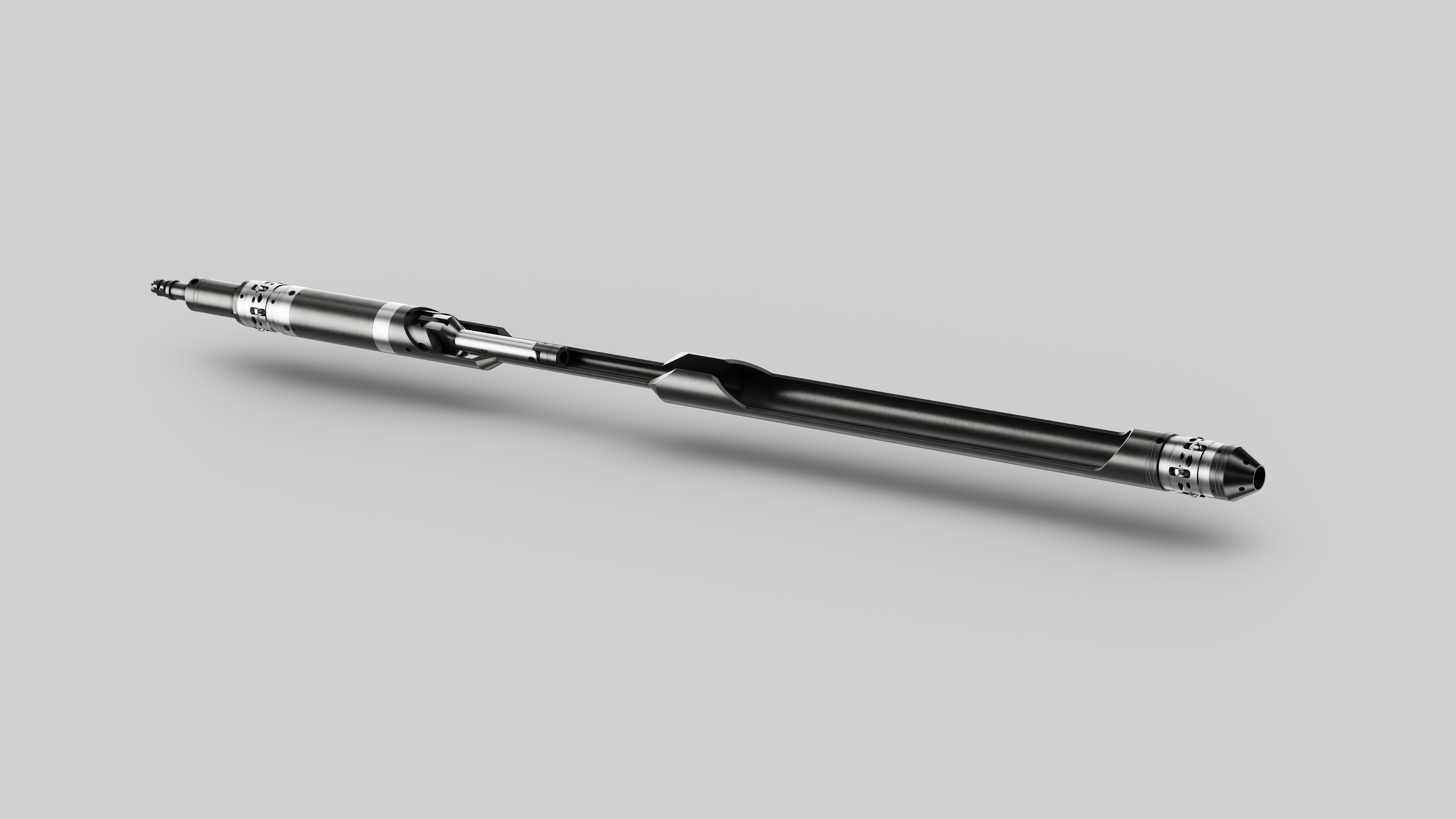

The LiMAR Slick Kickover Tool (KOT) with the enhanced friction reducing roller swivel design will install & retrieve 1” and 1-1/2” Gas Lift Valves in deviated well bores – regardless of Side Pocket Mandrel (SPM) orientation.
Maintaining key industry proven mechanisms within the KOT trigger and kick arm along with the user-friendly maintenance benefits of the unique roller swivel design, the Slick Kickover Tool is easy to operate and maintain.
TOOL APPLICATIONS:
- Especially suited but not limited to deviated wells, the Slick Kickover Tool will service 1” & 1-1/2” Gas Lift Valves in various Side Pocket Mandrels, regardless of orientation
DESIGN FEATURES & BENEFITS:
- Extreme low friction, compact roller swivel design to reduce tool length and increase performance in high angle, deviated well bores
- Integral Valve Catcher to mitigate subsequent recovery runs due to potential dropped valve
- Industry proven kick arm and trigger mechanisms
- Improved bypass area to improve deployment in fluid
- Quick Connections supplied as standard to further reduce assembly length and prevent damage caused by installing crossovers using wrenches
- Supplied in most roller wheel diameters to suit customer requirements
- Fully shearable at various points within the design to ensure safe recovery
- Multiple, easy to access service points for simple maintenance
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Product Code | Nominal Tubing Size | To suit GLV | Effective Roller OD | Fish Neck | Connection |
| 1180 | 2-3/8" | 1" | Up to 1.813" | Optional | Optional |
| 1180 | 2-3/8" | 1.5" | Up to 1.925" | Optional | Optional |
| 1180 | 2-7/8" | 1" & 1.5" | Up to 2.250" | Optional | Optional |
| 1180 | 3-1/2" | 1" & 1.5" | Up to 2.720" | Optional | Optional |
| 1180 | 4-1/2" | 1" & 1.5" | Up to 3.800" | Optional | Optional |
| 1180 | 5-1/2" | 1” & 1.5” | Up to 4.300" | Optional | Optional |
