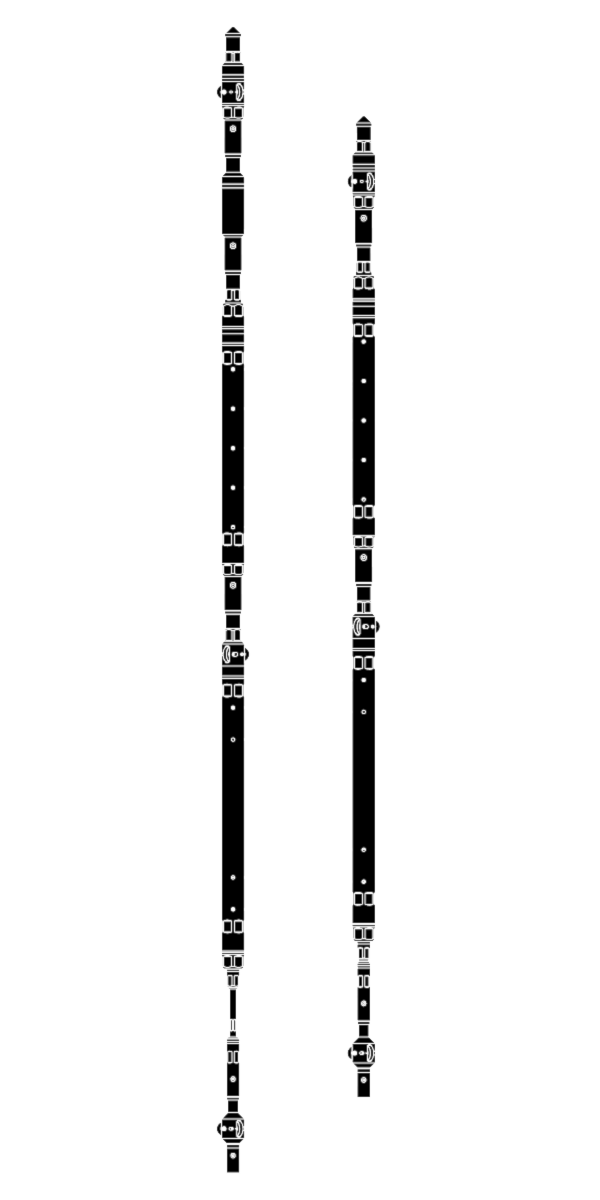

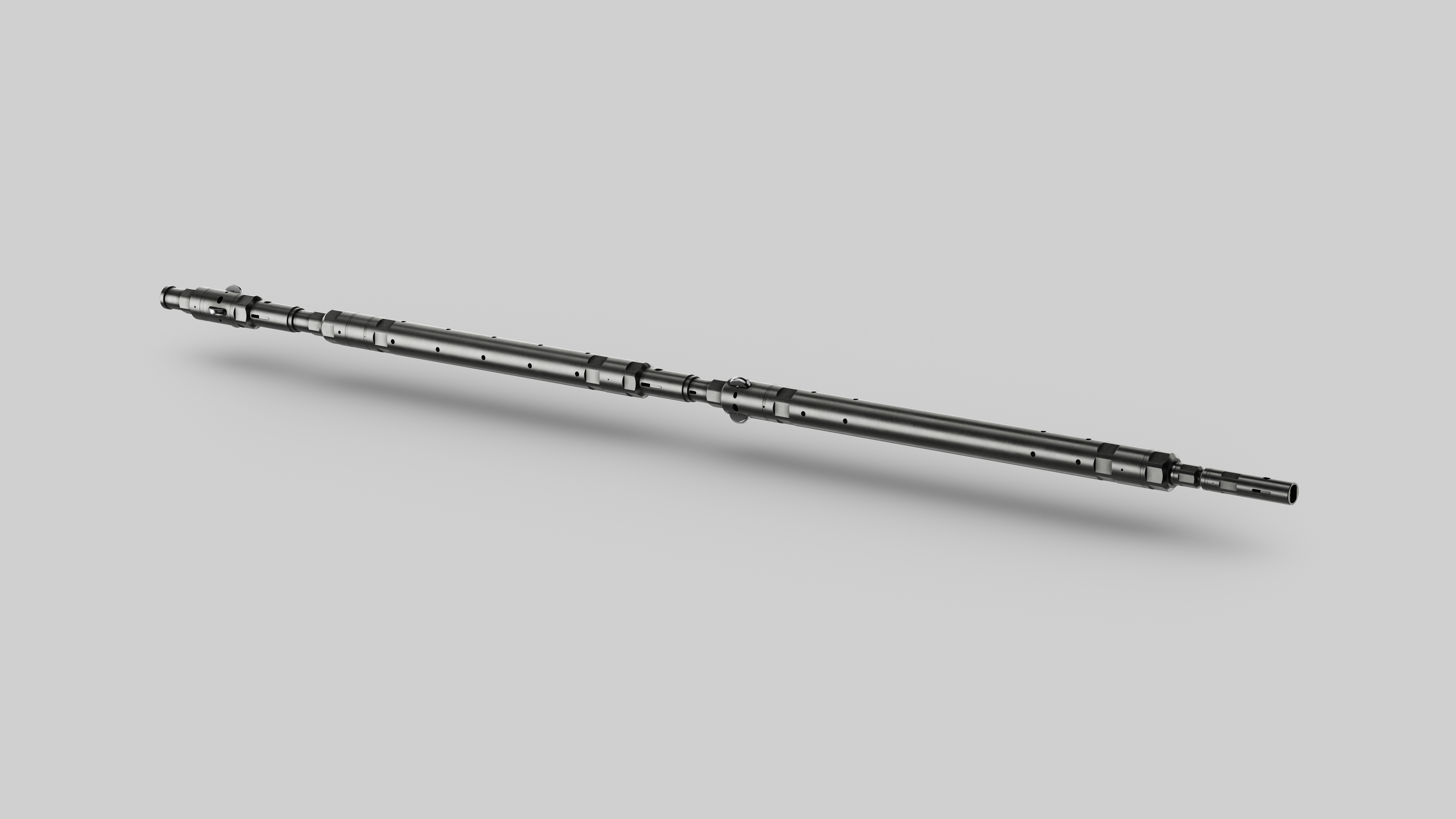

The LiMAR Compact Combination Toolstring (CCT) is a fully customisable selection of components designed for use in applications where lubricator height is limited.
The LiMAR CCT integrates all of the necessary functionality required of a wireline toolstring, in a reduced overall length whilst maintaining operational performance. The fully bespoke design can be as basic or complex as the customer desires. From a simple heavy stem and tubular jar configuration to a fully functional high impact, rollerised design, the operational flexibility is extensive.
TOOL APPLICATIONS:
- For use during operations with limited lubricator / rig up height
- Optimising toolstring performance in high angle wells
DESIGN FEATURES & BENEFITS:
- Fully customisable to suit a range of applications by constructing the CCT from a selection of the following components;
- Rope Socket - Braided Line
- Rope Socket - Slickline
- Swivel Sub
- Accelerator
- Stem
- Roller Stem
- Tungsten Stem
- Tubular Jar Housing
- Spring Jar
- Hydraulic Jar
- Dummy Slide Stem
- Multi-Roller Sub
- Fluted Centraliser
- Lower connection options to suit customer requirements
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Product Code | Component Options | Actual OD (without Rollers) | To Suit Tubing Size | Upper Fish Neck | Lower Connection | Rollerised Option Available |
| 1007 | Rope Socket - Braided | 3.250" | 4-1/2", 5-1/2" & 7" | 2.313" | Optional | Yes |
| 1007 | Rope Socket - Slick | 3.250" | 4-1/2", 5-1/2" & 7" | 2.313" | Optional | Yes |
| 1007 | Swivel | 3.250" | 4-1/2", 5-1/2" & 7" | N/A | Optional | Yes |
| 1007 | Accelerator | 3.250" | 4-1/2", 5-1/2" & 7" | N/A | Optional | Yes |
| 1007 | Stem | 3.250" | 4-1/2", 5-1/2" & 7" | N/A | Optional | Yes |
| 1007 | Tungsten Stem | 3.250" | 4-1/2", 5-1/2" & 7" | N/A | Optional | Yes |
| 1007 | Roller Stem | 3.250" | 4-1/2", 5-1/2" & 7" | N/A | Optional | Yes |
| 1007 | Tubular Jar Housing | 3.250" | 4-1/2", 5-1/2" & 7" | N/A | Optional | Yes |
| 1007 | Spring Jar | 3.250" | 4-1/2", 5-1/2" & 7" | N/A | Optional | Yes |
| 1007 | Hydraulic Jar | 3.250" | 4-1/2", 5-1/2" & 7" | N/A | Optional | Yes |
| 1007 | Optional Slide Stem | 3.250" | 4-1/2", 5-1/2" & 7" | N/A | Optional | Yes |
For additional sizes or further information please contact sales
