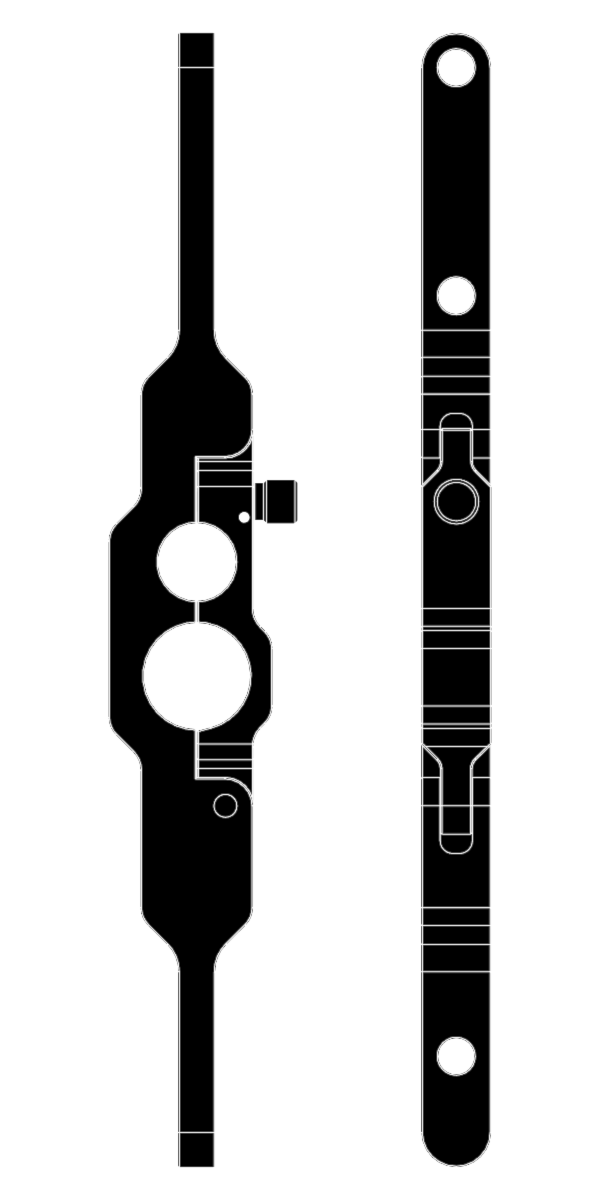

The LiMAR Toolstring Suspending Bar Clamp is designed to safely lift, lower and suspend a toolstring at surface across a Quick Union connection. Toolstring Suspending Bar Clamp
The Clamp is generally used when deploying or retrieving flow control devices or lengthy toolstrings in operations where rig-up height is limited. After assembling the Clamp beneath the fish neck of the toolstring it can be locked into place by a knurled screw which safely secures the hinged gate. The toolstring can then be safely suspended, raised or lowered using the lifting attachments provided.
TOOL APPLICATIONS:
- To provide a simple means of safely lifting, lowering and suspending a toolstring at surface when rig-up height is limited
DESIGN FEATURES & BENEFITS:
- Weld-free design
- Available in a range of sizes to suit industry standard fish necks and quick unions
- Dual fish neck size option for operational flexibility and inventory reduction
- Lifting eyes positioned for central, balanced lift point
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
TECHNICAL DATA
| Assembly Part No. | To Suit Fish Neck(s) | Single / Dual | Quick Union Options | Safe Working Load |
| 1112-1187-XXXX-RX | 1.187" | Single | up to 7" Nominal | 500 KG |
| 1112-1187-1375-XXXX-RX | 1.187" / 1.375" | Dual | up to 7" Nominal | 500 KG |
| 1112-1375-XXXX-RX | 1.375" | Single | up to 7" Nominal | 500 KG |
| 1112-1375-1750-XXXX-RX | 1.375" / 1.750" | Dual | up to 7" Nominal | 500 KG |
| 1112-1750-XXXX-RX | 1.750" | Single | up to 7" Nominal | 500 KG |
| 1112-1750-2312-XXXX-RX | 1.750" / 2.312" | Dual | up to 7" Nominal | 500 KG |
| 1112-2312-XXXX-RX | 2.312" | Single | up to 7" Nominal | 500 KG |
| 1112-3120-XXXX-RX | 3.120" | Single | up to 7" Nominal | 500 KG |
XXXX- denotes the nominal Quick Union dimension
For additional sizes or further information please contact sales
