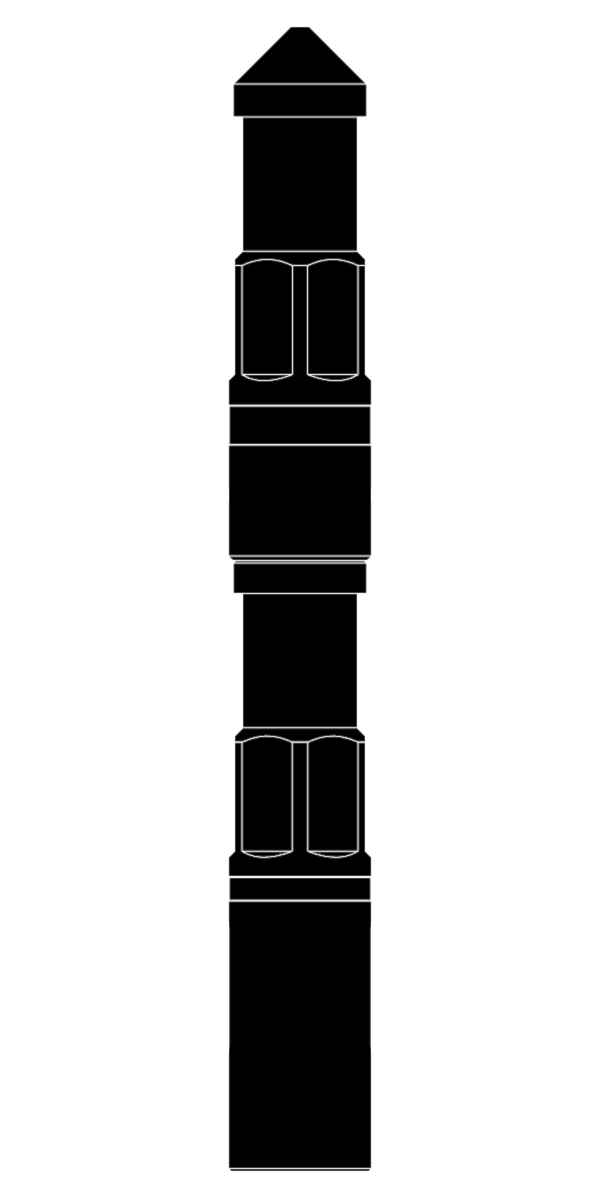

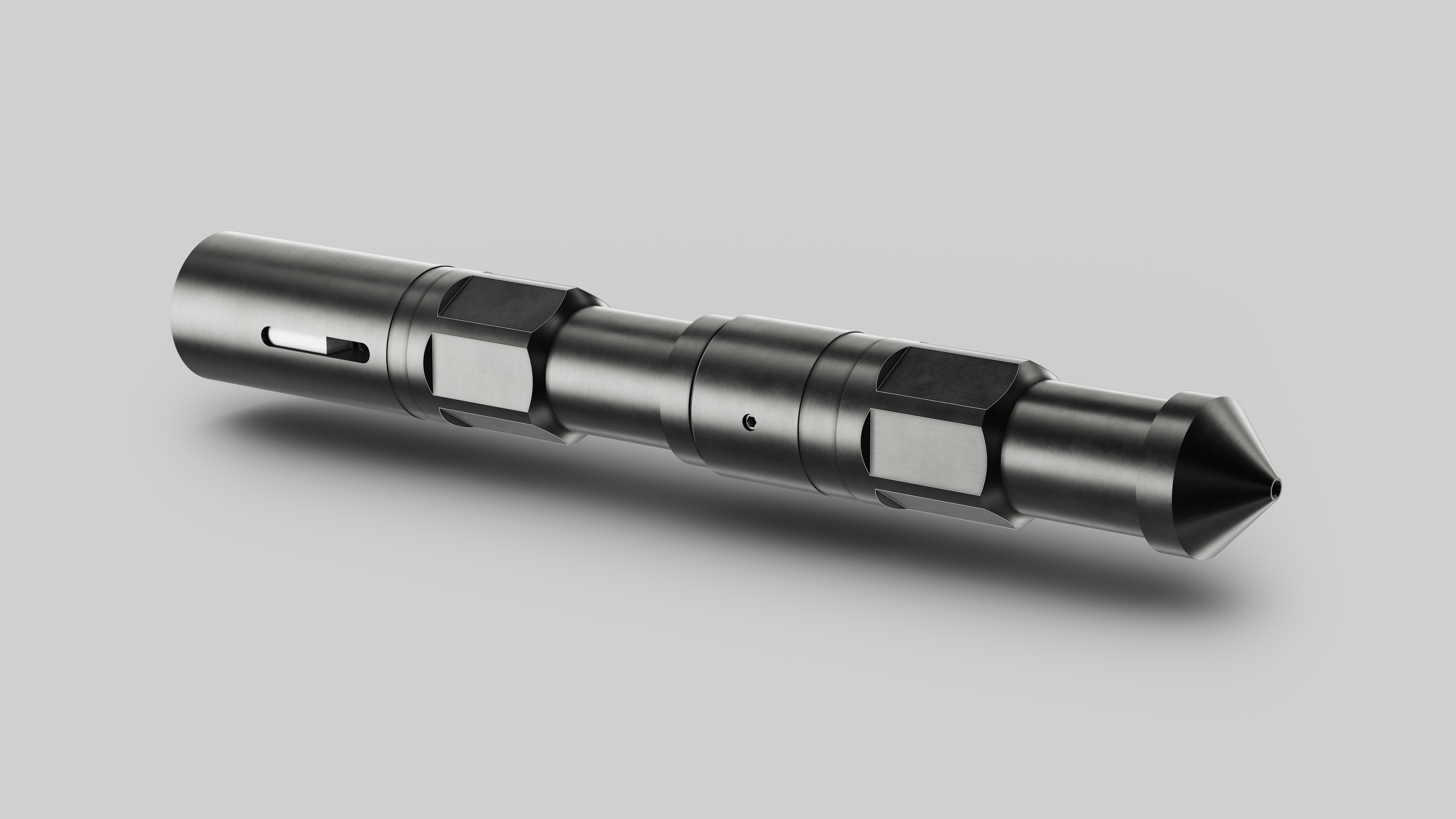

The LiMAR Slickline Rope Socket is devised to effectively attach the end of the slickline to a wireline toolstring.
A pear drop & sleeve assembly provides and maintains a reliable grip to the wire especially when under load during heavy jarring operations.
TOOL APPLICATIONS:
- For use with slickline to enable a reliable attachment to the toolstring
DESIGN FEATURES & BENEFITS:
- To suit up to 0.160” OD slickline
- Available in all standard toolstring OD’s
- Connection options to suit customer requirements
- Integral LiMAR® Swivel options available
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Assembly Part No. | Actual OD | Fish Neck | Connection | Wire Size | Make up Length |
| 1002-1250-XXXX-XXX-RX | 1.250" | 1.187" | Optional | up to 0.125" | 12.00" (LQK) |
| 1002-1500-XXXX-XXX-RX | 1.500" | 1.375" | Optional | up to 0.160" | 14.71" (LQK) |
| 1002-1750-XXXX-XXX-RX | 1.750" | 1.375" | Optional | up to 0.160" | 14.71" (LQK) |
| 1002-1875-XXXX-XXX-RX | 1.875" | 1.750" | Optional | up to 0.160" | 14.94" (LQK) |
| 1002-2125-XXXX-XXX-RX | 2.125" | 1.750" | Optional | up to 0.160" | 15.77" (LQK) |
| 1002-2500-XXXX-XXX-RX | 2.500" | 2.313" | Optional | up to 0.160" | 17.79" (LQK) |
XXXX - Denotes wire size
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
