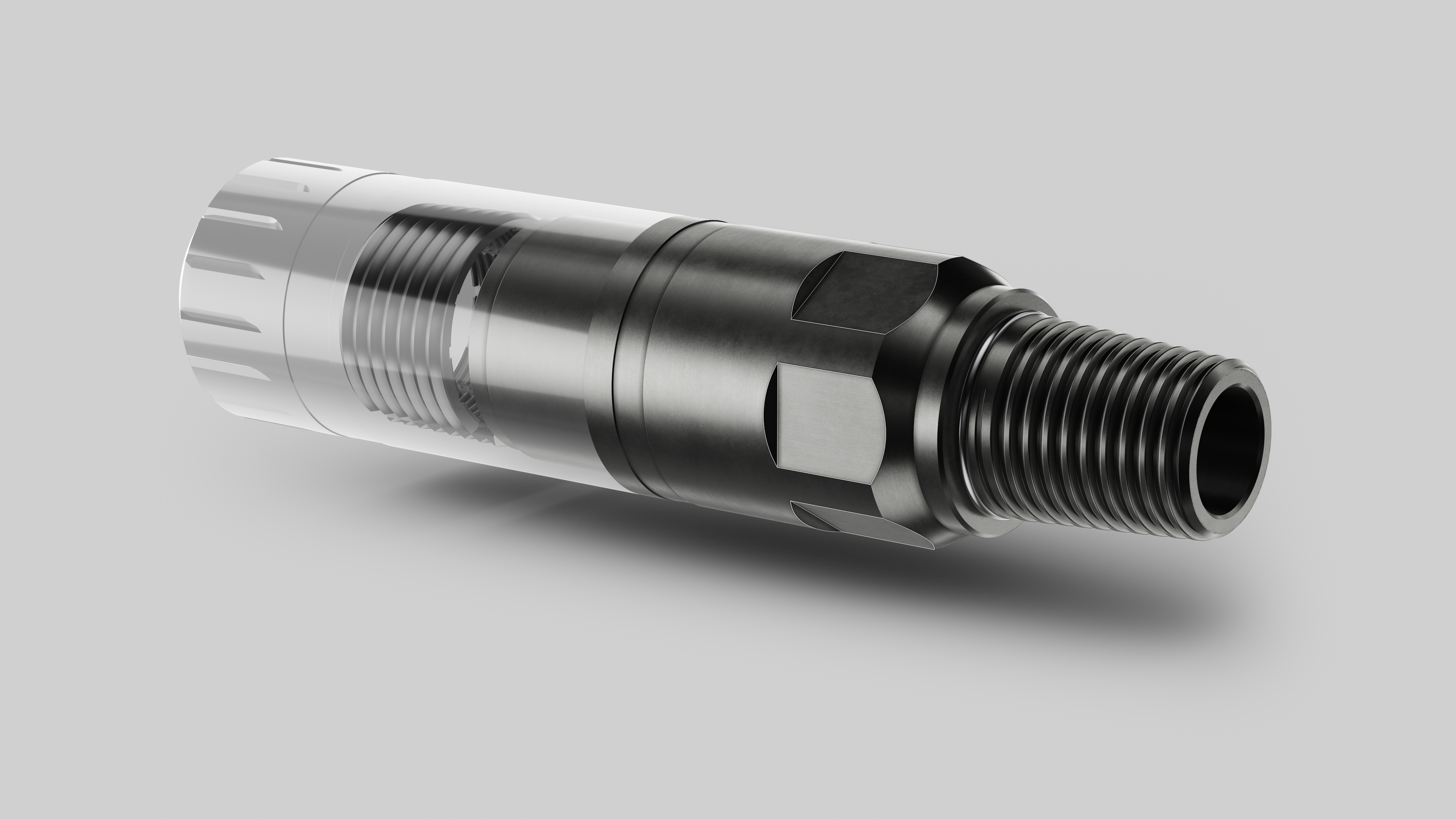

The LiMAR® External Slip Connector is a Coiled Tubing Connector designed for attaching the Coiled Tubing to the Bottom Hole Assembly.
The External Slip Connector design provides a simple but effective high torque-thru connection to the Coil, making it ideally suited for operations such as milling. The connector is also fitted with o-ring seals & back-up rings making it suitable for high pressure applications.
TOOL APPLICATIONS:
- Connecting interface between the Coiled Tubing and BHA
- Ideal for use during torque-thru applications such as milling operations
DESIGN FEATURES & BENEFITS:
- Superior strength & torque connection
- Available in a range of sizes to suit industry standard Coiled Tubing diameters and BHA’s
- Slim running OD
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
- Connection options to suit customer requirements
- Corrosion resistant materials
TECHNICAL DATA
| Assembly Part No. | To Suit CT | Minimum OD | Make up Length |
| 132-1000-XXX-RX | 1.000" | 1.687" | 7.38" |
| 132-1250-XXX-RX | 1.250" | 1.875" | 7.91" |
| 132-1500-XXX-RX | 1.500" | 2.125" | 7.75" |
| 132-1750-XXX-RX | 1.750" | 2.375" | 8.14" |
| 132-2000-XXX-RX | 2.000" | 2.750" | 8.28" |
| 132-2375-XXX-RX | 2.375" | 3.125" | 8.28" |
XXX - Last 3 digits of part number denotes connection type - Please refer to the connection code data sheet.
For additional sizes or further information please contact sales
