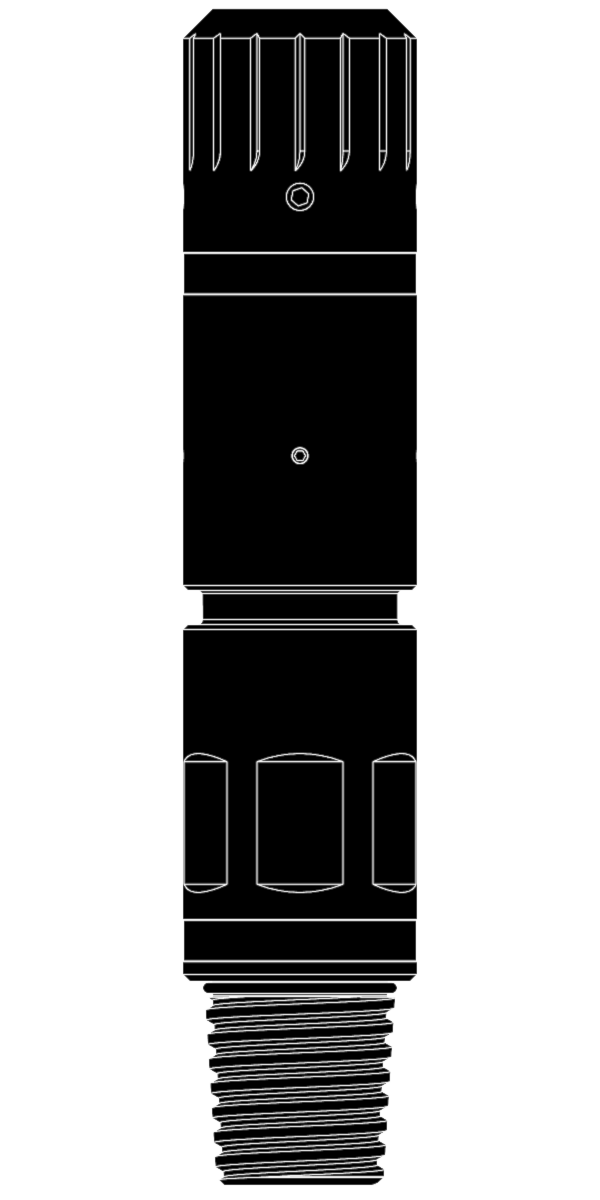

The LiMAR Grapple Connector is a Coiled Tubing Connector designed for attaching the Coiled Tubing to the Bottom Hole Assembly.
The Grapple Connector design provides a simple but effective connection to the Coil. The connector is also fitted with o-ring seals & back-up rings making it suitable for high pressure applications.
TOOL APPLICATIONS:
- Connecting interface between the Coiled Tubing and BHA
DESIGN FEATURES & BENEFITS:
- Superior strength
- Available in a range of sizes to suit industry standard Coiled Tubing diameters and BHA’s
- Slim running OD
- Short make-up length
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
- Connection options to suit customer requirements
- Corrosion resistant materials
TECHNICAL DATA
| Assembly Part No. | To Suit CT Size | Minimum OD | Make up Length |
| 101-2375-XXX-RX | 2.375" | 3.125" | 12.12" |
| 101-2875-XXX-RX | 2.875" | 3.750” | 13.33" |
XXX - Last 3 digits of part number denotes connection type - Please refer to the connection code data sheet. For additional sizes or further information please contact sales
